API 12D , استاندارد مخازن ذخیره جوشی

Name: API 12D , استاندارد مخازن ذخیره جوشی
Brand: API 12D
SKU: 0000-11-01
Availability: OnlineOnly

استاندارد API _ انستیتو نفت و گاز آمریکا

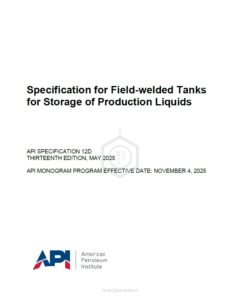

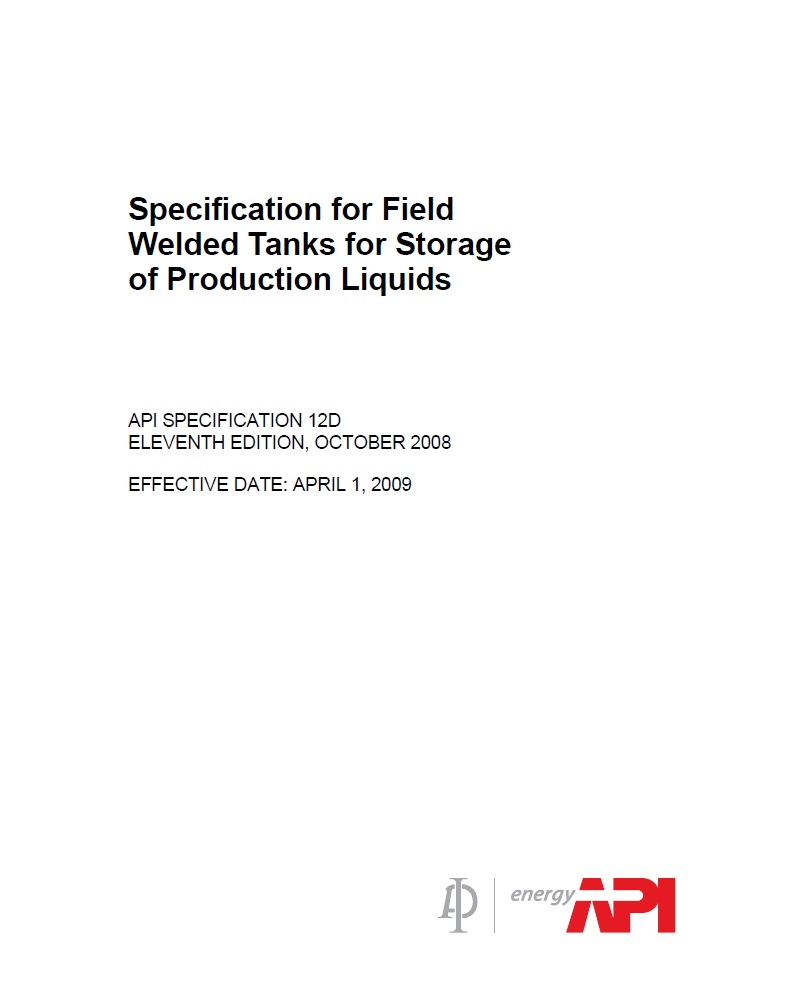

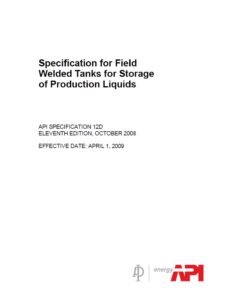

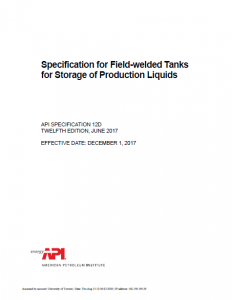

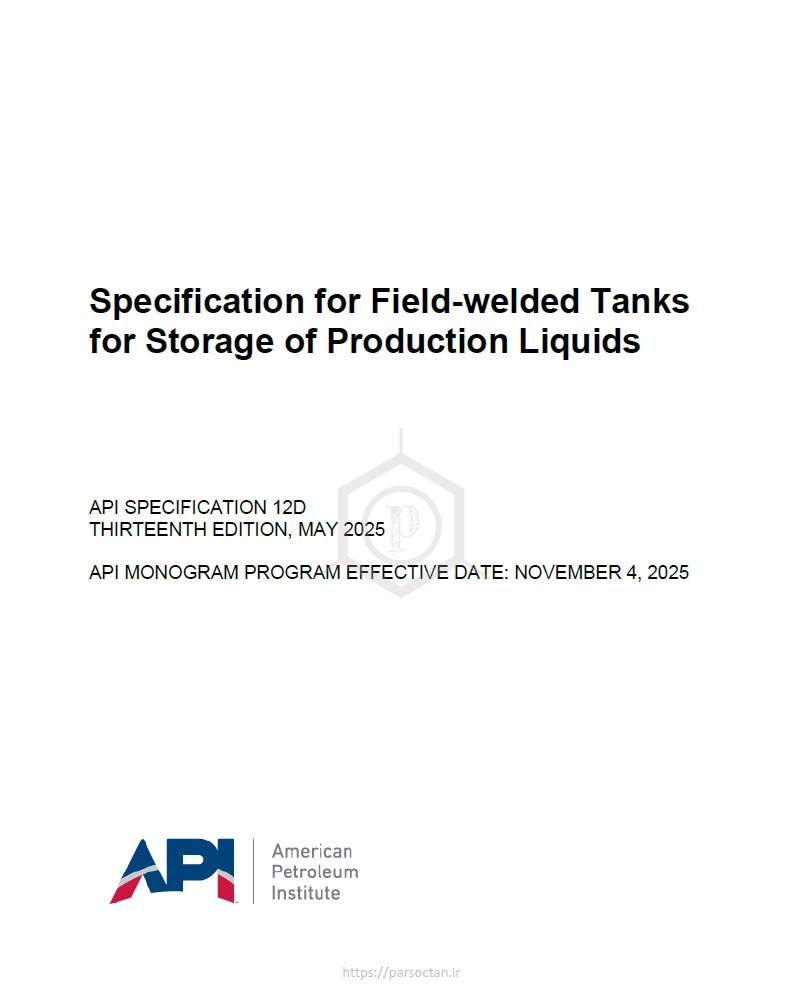

API SPEC 12D : Specification for Field-welded Tanks for Storage of Production Liquids

دانلود استاندارد API 12D _آخرین ویرایش (استاندارد تانک و مخازن ذخیره جوشی صنایع نفت و گاز، برای ذخیره فرآورده های مایع نفتی)

فهرست استاندارد:

1 Scope
1.1 General.
1.2 Compliance
2 Normative References
3 Terms and Definitions
4 Materials
4.1 General
4.2 Plates
4.3 Sheets
4.4 Welding Electrodes
4.5 Structural Shapes
4.6 Piping
4.7 Flanges
4.8 Couplings
4.9 Bolting
5 Design
5.1 Loads
5.2 Load Combinations
5.3 Tank Uplift
5.4 Other Design Conditions
5.5 Tank Size
5.6 Weld Size
5.7 Joints
5.8 Bottom Design
5.9 Shell Design
5.10 Floating Roof
5.11 Roof Design
5.12 Appurtenance Designs
6 Venting Requirements
6.1 Normal Venting
6.2 Emergency Venting
7 Construction, Testing, and Painting
7.1 Construction
7.2 Welding
7.3 Testing
7.4 Visual Examination
7.5 External Painting
7.6 Internal Coating
7.7 Cleanup
8 Marking
9 Inspection and Rejection
9.1 Inspection Notice
9.2 Inspection
9.3 Rejection
Annex A
Annex B (informative) Suggestions for Order Field-welded Tanks
Annex C (informative) Background on Past Editions
Figures
1 Tank Dimensions
2 Cone Bottom
3 Nameplate Format
Tables
1a Tank Dimensions (see Figure 1) (SI
1b Tank Dimensions (see Figure 1) (USC)
2 Key to Figure 1 (Dimensions)
3 Key to Figure 2 (Dimensions)
4 Allowable Roof Support Stresses
